4CH Security DVR System with 600TVL Day Night Cameras & 1TB HDD & 960H Recording
Availability: 7 Items
The kit KDC4-CARBZ4ZN includes a 4 CH H.264 standalone 960H/D1 DVR with 1TB and four high resolution night vision outdoor security cameras. All cables and power supplies are included.
449,00 $
-50,00 $
499,00 $
Related Products
-
0 Review(s)Wireless Motion PIR Sensor Alarm 315MHz
-
0 Review(s)Wireless RF Bug Detector To Protect Your Stuff
-
0 Review(s)Wireless Camera Finder Preventing Peeking
-
0 Review(s)Security Kitchen Alarm LPG Gas Detector for Boat
-
0 Review(s)CCTV SDVR DVR 24 Channels CIF Real Time 24 HD...
-
0 Review(s)CCTV System 8 Channel DVR 6 Camera 1000TVL
-
0 Review(s)CCTV NVR Wireless WIFI IP Camera 720P HD Kit
-
0 Review(s)CCTV 9 channels Cameras Network NVR complete Kit
-
0 Review(s)CCTV 8 Channels IP HD Bullet Cameras
-
0 Review(s)8 Channel CCTV Security DVR ZMODO Kit Cameras
-
0 Review(s)CCTV 8 Channels 600TVL Hi-Reso Camera Kit &1TB HDD
-
0 Review(s)CCTV ZMODO 8 Channels Hi-Reso Camera Kit & 1TB HDD
-
0 Review(s)CCTV ZMODO Security Alarm System 700TVL & 1TB HDD
-
0 Review(s)8 Channels CCTV Security & Alarm System 700TVL
-
0 Review(s)High Speed Tilt Zmodo Camera PTZ 22X Zoom+Keyboard
-
0 Review(s)16 Channel ZMODO CCTV Security Cameras Kit & 1TB
-
0 Review(s)16 Channel CCTV Security 700TVL Cameras Kit & 1TB
-
0 Review(s)CCTV 8 Channel 6mm Zmodo Security System Kit & 1TB...
-
0 Review(s)Wireless IP CCTV 4 Channel High Definition Cameras
-
0 Review(s)CCTV Surveillance ZMODO Technology 8 Cameras & 1TB
-
0 Review(s)DVR Zmodo Security & Alarm 4 Camera Surveillance
-
0 Review(s)Zmodo IP Weatherproof Camera 1/4 Color CMOS
-
0 Review(s)CCTV Security System 600TVL 16 Cameras Kit & 1TB
-
0 Review(s)8 Channel CCTV 6mm Zmodo Security System Kit & 1TB
-
0 Review(s)8 Channel CCTV 6mm Zmodo Security System Kit & 1TB
-
0 Review(s)8 Ch CCTV 600TVL Zmodo Security System Kit 1TB
-
0 Review(s)CCTV 8 Channels Zmodo Security System Kit 1TB
-
0 Review(s)8CH CCTV Security DVR ZMODO Kit Camera & 1TB HDD
-
0 Review(s)32 channels DVR With 2TB hard drive real-time...
-
0 Review(s)CCTV System 8 Channels Cameras 1200TVL
The kit KDC4-CARBZ4ZN includes a 4 CH H.264 standalone 960H/D1 DVR with 1TB and four high resolution night vision outdoor security cameras. All cables and power supplies are included.
The 4 channel Security DVR included in the package not only allows you to view live, record and playback full screen video in real-time (30fps per channel, 120fps total) at D1 resolution, also offers you 960H option of high quality live viewing and recording for easy upgrading the cameras into higher resolution. Coupled with 600TVL high resolution night vision cameras, this premium system offers a larger, sharper, undistorted image with a truer aspect ratio that enhances surveillance.
Built to withstand treacherous weather, this bullet camera shoots at 600 TV Lines (TVL) and features 24 IR (infrared) LEDs to capture high quality images in both daylight and total darkness. Live, crystal clear video and durability highlight this Color weatherproof surveillance camera. This camera is perfect for outdoor and indoor applications, driveways, parking lots, halls, warehouses, and open office areas.
Benefits
- Mac and Pc Compatible – Supported Browsers: Internet Explorer, Safari, Chrome and Mozilla Firefox
- HDMI Outputs – HDMI outputs allows you to connect with all compatible tv screens
- Night Vision – See up to 65′ away in total darkness!
Video Review
3D Spin
Zmodo KDC4-CARBZ4ZN-1T Specs
Features
Weatherproof
Cameras perform both in outdoor and indoor applications with professional-grade aluminum housing and sunshade.
IR-Cut
Cameras are built-in IR-Cut, which provides accurate color reproduction in all lighting conditions with crisp and detailed image quality you can rely on.
Pentaplex
Pentaplex operation – view, record, playback, back up, mobile phone view and remote access simultaneously.
H.264 Video Compression
The DVR utilizes H.264 compression to bring you great quality video while maximizing your hard drive storage capacity.
Multiple Recording Modes
Continuous recording, time scheduled recording, motion detected recording and alarm triggered recording are available for your choice. Also protect your privacy using the “Mask” feature. Your privacy is just as important as your security.
Instant Email Notification
Receive instant email alerts when motion is detected, alarm is triggered, video loss occurs, etc.
Convenient Backup
Easily transfer video files from the surveillance system to a PC, Flash Drive or USB Hard Drive in order to free-up space for new video while retaining important footage.
Multi-Level, Multi-User Management
Admin user takes the highest authority and controls every function. You can share the video to your friends or family but still no need to worry about the safety of the data.
Multiple Viewing Options
View all cameras at once on a split-screen, or view 1 camera at a time on full screen with the option to cycle through each of the cameras at a customizable speed.
Playback Modes
Supports normal playback, fast forward playback, rewind playback, manual single-frame playback, you can also simply drag the playback progress bar to quickly locate the playback time. It also supports multi-channel playback simultaneously, and each channel can be enlarged into full screen.
Easy Search Options
In order to easily pinpoint an event, this DVR allows you to search recorded video by time, motion detection event or alarm triggered event.
User-Friendly Navigation
The easy to use interface, along with the accompanying mouse and remote, make moving through menus a breeze
Technical Specs
|
ZMD-DT-SCN4
| |
|---|---|
| SYSTEM | |
| Pentaplex | Simultaneous View, Record, Playback, Backup & Remote Monitoring |
| INPUTS/OUTPUTS | |
|---|---|
| Video In | 4 x 1Vp-p, CVBS, 75ohms, BNC |
| Video Out | 1 x BNC |
| VGA Out | Yes |
| HDMI | Yes. Video and Audio |
| Audio In | 4 line In (RCA), G.711 |
| Audio Out | 1 line Out (RCA), G.711 |
| USB Port | 2 at the Back |
| Alarm In | 2ch In |
| Alarm Out | 1 ch Out |
| PTZ Control | RS-485 |
| DISPLAY | |
|---|---|
| Live Display | 1, 4 |
| Live Display Speed | 120 NTSC / 100 PAL |
| GUI OSD | Yes |
| System Navigation | USB Mouse, IR Remote Controller, Front Panel |
| RECORDING | |
|---|---|
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Recording Resolution | 960H:960×480 pixels with 30 FPS /960×576 pixels with 25 FPS D1:704×480 pixels with 30 FPS /704×576 pixels with 25 FPS HD1:704×240 pixels with 30 FPS /704×288 pixels with 25 FPS CIF:352×240 pixels with 30 FPS /352×288 pixels with 25 FPS |
| Record Mode | Manual / Time Scheduled / Alarm Triggered / Motion Detect |
| Recording Resolution Setting | Per Camera for Different Resolutions |
| Recording Quality Control | Six Grades Optional |
| Pre Recording | Max. 10 Secs |
| Reliability | Auto-Recovery after Power Failure |
| PLAYBACK | |
|---|---|
| Sync Playback | 4-CH |
| Playback Function | Normal Play /Speed Play/ Fast Back Play/ Manual Single-frame Slow Play/ Digital Zoom |
| STORAGE & ARCHIVE | |
|---|---|
| Storage | 1 SATA HDD (3.5″) |
| Maxinum Capacity | Up to 1x 2TB |
| Backup Media | USB Flash drive, USB Hard Disk and Network Backup |
| Backup File Format | H.264 file (AVI Generator Included) |
| CONNECTIVITY | |
|---|---|
| Supported Operating Systems | Windows™ XP, Vista, 7 , 8 |
| Browsers | Firefox, Chrome, Internet Explorer or Safari |
| Email Notification | Text with Snapshot |
| Instant Smart Phone Compatibility | Smart Phone & Tablet Compatibility: iPad , iPhone, Android, Windows Mobile, Symbian or Blackberry |
| Network Protocol | TCP/IP / PPPoE /DDNS /FTP / NTP / UPNP |
| Network Interface | 1 RJ45 10/100M |
| GENERAL | |
|---|---|
| Supply Voltage | DC 12V 2A |
| Unit Dimensions | 10.19in (W) x 8.7in (D) x 1.7in (H) / 259mm (W) x 221mm (D) x 44mm (H) |
| Unit Weight | 3.85lbs |
|
ZMD-CCH-BBS23NM – 600TVL IR BULLET CAMERA
| ||
|---|---|---|
| Image Sensor | 1/4″ Color CMOS | |
| TV System | NTSC / PAL | |
| Horizontal Resolution | 600 TV-Lines | |
| Lens | 3.6mm | |
| Number of IR LEDs | 24 PCS | |
| Infrared Illumination (Night Vision) | up to 80ft (20~25m) | |
| Minimum Illumination | 0.1Lux(IR LED On) | |
| S/N Ratio | ≥ 48dB | |
| Video Output | 1.0Vp-p, 75ohms (BNC) | |
| Weatherproof | Yes | |
| Operating Temperature | 14°F~122°F / -10°C ~50°C | |
| Power | 12V DC | |
| Power Consumption | IR on Max 150mA | |
| Dimensions (W x D x H) | 3.3″ x 2.5″ x 2.6″ | |
| Gross Weight | 0.33 lbs | |
| Material | Metal Shell | |

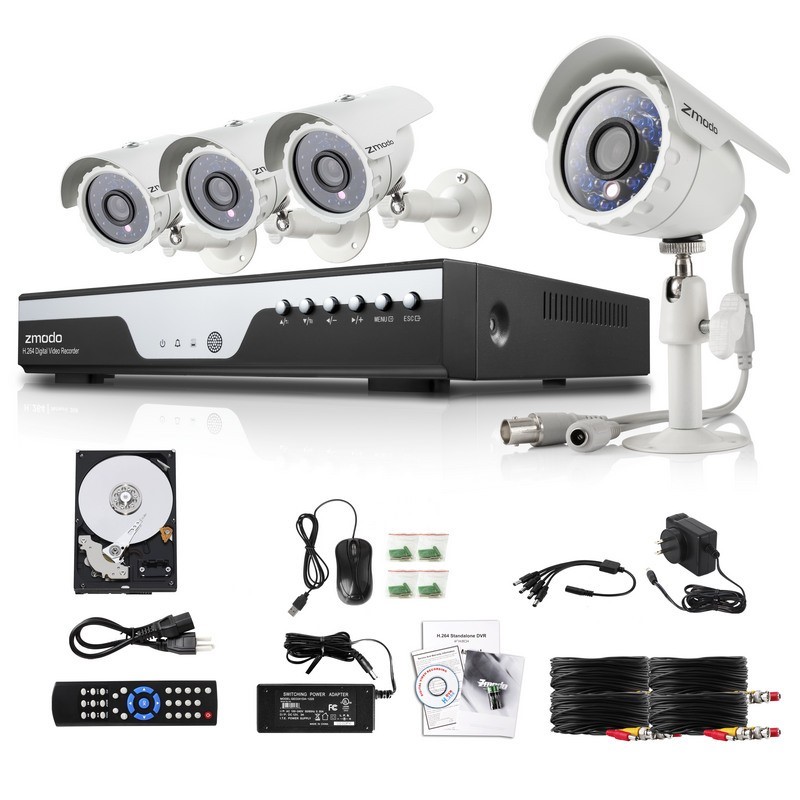

Included With: KDC4-CARBZ4ZN-1T
